Differential mode-gain equalization via femtosecond laser micromachining-induced refractive index tailoring

Recently, various network applications such as artificial intelligence, the Internet of Things, virtual reality, and cloud computing are expected to rapidly deplete the transmission capacity based on standard single-mode fibers (SSMF). By extending the operation wavelength to the S-band, the SSMF-based transmission system has reached a capacity record of 206.1 Tb/s¹. However, owing to the limitations originating from the fiber nonlinearity, further extending the transmission band to increase the capacity is not sustainable². The mode-division multiplexing (MDM) technique, either by utilizing linear-polarized (LP) or the orbital angular momentum (OAM) mode as an independent transmission channel, has been regarded as a promising solution to mitigate the capacity limitations of traditional SSMF-based transmission systems^3,4. To deploy a long-haul MDM transmission system, a few-mode Erbium-doped fiber amplifier (FM-EDFA) with the ability to simultaneously amplify the wavelength division multiplexing (WDM) signals within all the guided modes is indispensable because the transmission attenuation of the few-mode fiber (FMF) needs to be compensated. Nevertheless, the differential modal gain (DMG) arising in the FM-EDFA owing to the different overlapping integrals among the pump mode profile, erbium doping, and signal mode profile, limits both the capacity and reach of the MDM transmission^5,6. Numerical results indicate that to achieve a 2000-km long-haul MDM transmission, an FMF link with a power variation of less than 1 dB is preferred⁷.

Several strategies have been proposed to minimize DMG, which can be divided into two categories. First, manipulation of the pump mode profile was implemented to achieve mode-selective Erbium-doped fiber (EDF) pumping^8,9. Alternatively, a cladding pumping scheme was proposed to homogenize the pump intensity within the core region^10,11. Second, the doping profile of the EDF was tailored to approach the optimal erbium ion distribution^12-14. These methods offer a DMG of less than 2 dB, but either a complicated pump configuration or a precise refractive index (RI) design of the FM-EDF is compulsory, increasing the deployment cost and inconvenience. Because the DMG indicates the gain difference among all the guided modes, cascading a DMG equalizer with a variable mode-dependent attenuation after the FM-EDFA can significantly simplify the implementation of FM-EDFA. These DMG equalizers can be categorized into the following two types of configurations: free-space and all-fiber. Free-space DMG equalizers include spatial light modulators (SLM) and silica-based planar light-wave circuit (PLC). By utilizing the spatial attenuation of the SLM, a range of variable DMG equalizations of 10 dB and an insertion loss (IL) of 5 dB can be achieved within the LP₀₁ and LP₁₁ mode-group¹⁵. However, 68% of the pumped power is expected to be dissipated. Meanwhile, a DMG equalizer based on a silica-based PLC with a 1.5 dB equalization range and 4 dB IL was demonstrated¹⁶. Again, only 40% of the pumped power was efficiently used for optical amplification. Therefore, both free-space DMG equalizers suffer from high manufacturing costs and severe ILs. The high IL of this type of DMG equalizer reduces the minimum gain of the FM-EDFA over the C-band. Alternatively, the all-fiber configuration offers the benefits of a low IL, easy maintenance, and excellent compatibility. By splicing a short-segment, small-core, single-mode fiber between two FMFs, a DMG equalizer with an 8 dB equalization range and 2 dB IL was reported¹⁷. A simulation study recently demonstrated that an all-fiber DMG equalizer based on cascaded long-period fiber gratings (LPFGs) can reduce the DMG to lower than 0.6 dB. However, this requires both, specially designed fibers and several LPFGs¹⁸. Given the persistent need for an efficient approach to provide concise and effective DMG equalization, it is imperative to explore viable methods to fulfill this objective.

Femtosecond laser micromachining has gained research interest worldwide owing to its ability to achieve both localized and permanent RI tailoring in various transparent media^19-21. By manipulating the fabrication parameters, such as the pulse energy, laser repetition rate, and fabrication velocity, several functional optical devices have been successfully demonstrated, including Fabry-Perot interferometers^22,23, fiber gratings^24-27, light manipulators^28-30, and mode converters^31,32. These devices have been widely applied to optical communication and sensing technologies.

In this study, a novel DMG equalization strategy based on in-line femtosecond laser micromachining that tailors the RI was proposed and experimentally demonstrated. Variable mode-dependent attenuation can be applied to each guided mode group by introducing an RI tailoring area into the FMF core, leading to successful DMG equalization. To verify the flexibility of the proposed DMG equalization strategy, a commonly used FM-EDFA with uniform erbium doping and fundamental-mode core-pumping was examined. First, when we numerically investigated the DMG increasing in the 3-LP mode-group FM-EDFA under variable pumping powers and EDF lengths, a detrimental DMG was identified. Subsequently, by optimizing the parameters of the DMG equalizer, including the femtosecond laser scanning length and width, and RI modification depth (∆n) induced by varying the femtosecond laser scanning times, a 3-LP mode-group DMG equalizer with a variable range of DMG equalization was obtained, which can be used to mitigate the DMG by cascading the all-fiber DMG equalizer after the FM-EDFA. Finally, a 2-LP mode-group DMG equalizer was experimentally fabricated via femtosecond laser micromachining, which can significantly reduce the DMG with a minimal IL, and efficiently utilize the pumping power. Moreover, by modifying the scanning times of the femtosecond laser, the equalization range of the DMG equalizer can be efficiently adjusted to satisfy the requirements of the commonly used 2-LP mode-group FM-EDFA pumping configuration.

Fig. 1 presents a schematic of the proposed DMG equalization scheme. Various guided modes with the same launch power were transmitted over the FMF, and all the guided modes experienced nearly the same attenuation. However, when the FM-EDFA was used to compensate for the transmission attenuation, a DMG occurred, which is defined as the maximum gain difference between the guided modes at a specific wavelength, as shown in Eq. 1

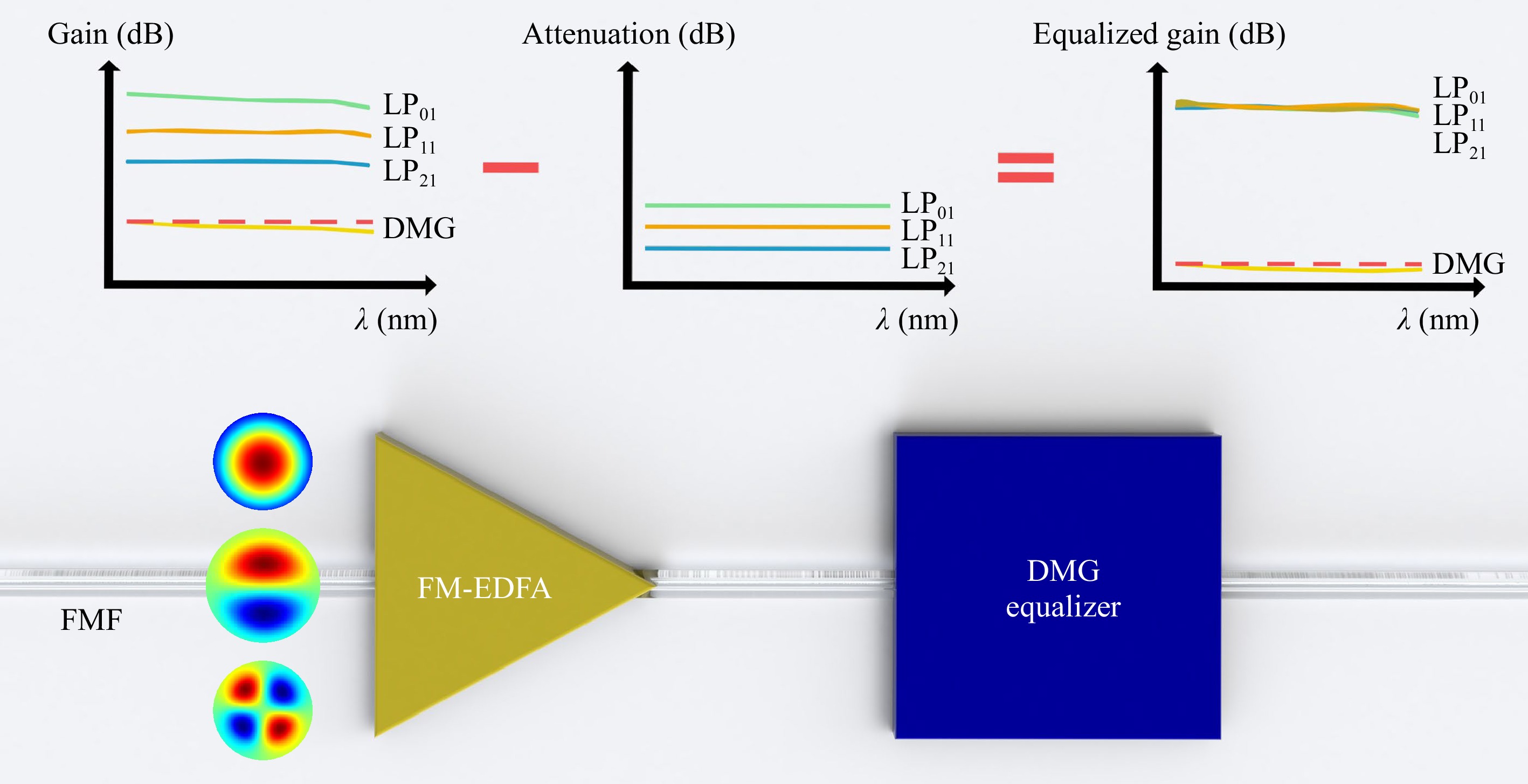

Fig. 1  Schematic of the DMG-equalized FM-EDFA configuration.

where G is the gain value at the specific guide mode, λ is the operational wavelength, and m and n are the indices of the guided mode. Two metrics were defined to evaluate the performance of the DMG equalizer: DMG_max and DMG_ave.

The DMG_max indicates the maximum DMG and DMG_ave is the average DMG in Eq. 1. Subsequently, to minimize the DMG, an in-line DMG equalizer with different mode attenuations (DMA) is cascaded after the FM-EDFA, and the DMA is defined as follows:

where $A_{LP_{01}} $ is the attenuation of the LP₀₁ mode and A_HOM is the attenuation of the high-order modes (HOMs). By modifying the RI of the FMF core via femtosecond laser micromachining, a higher attenuation is applied to the LP₀₁ mode while minimizing its impact on the HOMs. Finally, the higher gain of the LP₀₁ mode can be effectively reduced by cascading the fabricated DMG equalizer, consequently achieving the DMG equalization of the FM-EDFA.

Fig. 2a presents a schematic diagram of the proposed DMG equalizer. The femtosecond laser was focused on the core of the FMF to generate RI modulation. The modified RI region induced by the femtosecond laser was then modeled as a cuboid, whose width W, height H, length L, and RI modulation depth ∆n can be flexibly manipulated by adjusting the femtosecond laser micromachining parameters, as shown in Fig. 2b, c. A simulation based on the beam propagation method was implemented to theoretically investigate the performance of the DMG, as shown in Fig. 2d. Various guided modes are expected owing to leakage of the fiber cladding, consequently suffering different attenuations. The LP₀₁ mode, whose profile is mainly concentrated at the center, experiences a larger attenuation than that of the HOMs. As shown in Fig. 2d, different attenuations of the LP₀₁, LP_11, and LP₂₁ modes were achieved by modeling a DMG equalizer in the FMF core. Because the degenerate modes are continuously and randomly coupled along the FMF, only the attenuation of the mode-group is considered. Therefore, by optimizing the DMG equalizer parameters, the variable-mode-dependent attenuation among the various mode-group can be obtained. Finally, an all-fiber DMG equalizer with a variable range was anticipated.

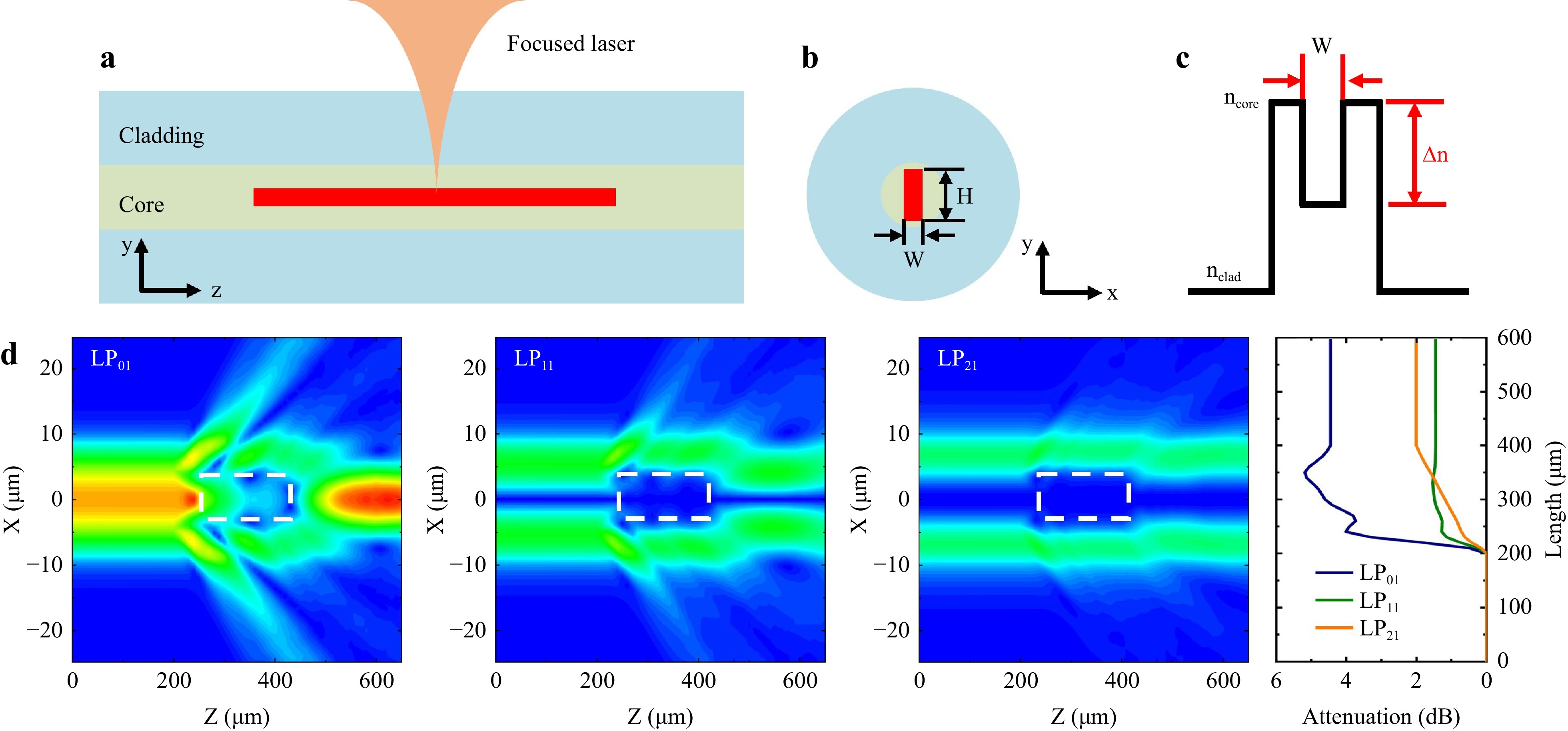

Fig. 2  Schematic of the proposed DMG equalizer based on femtosecond laser micromachining. a. Schematic of the top-view of the modified RI region. b. Side view of the modified RI region. c. Modified RI profile following femtosecond laser micromachining. d. Simulation of the mode field and attenuation variations when different modes pass through the tailored RI region; the white dotted area indicates the modified RI region.

To verify the feasibility and advantages of the proposed DMG equalization strategy, a simple-structured and cost-effective 3-LP mode group EDFA with uniform Erbium doping and fundamental mode core-pumping was numerically investigated to introduce a larger DMG and identify the relationship between the DMG and pumping parameters, including the pumping power and EDF length, as shown in Fig. 3a.

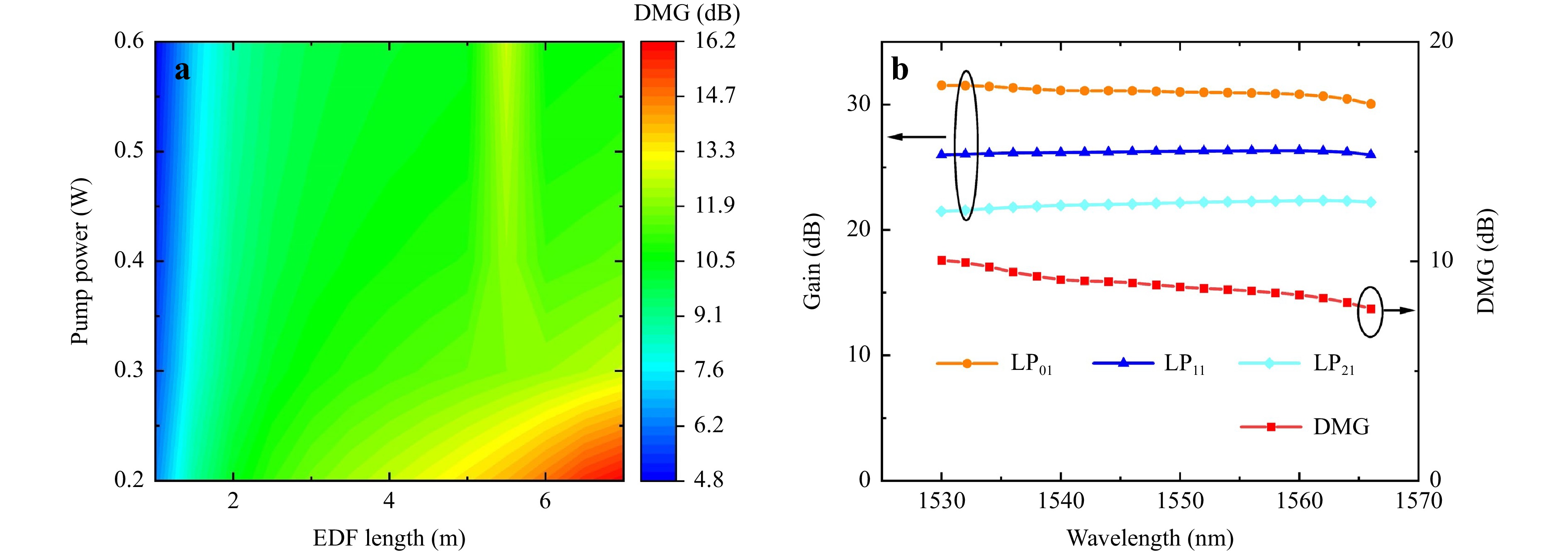

Fig. 3  DMG arising in 3-LP mode-group FM-EDFA. a DMG under different pumping powers and lengths at 1550 nm. b DMG over the C-band under the conditions of a 4.5 m EDF and 600 mW fundamental mode pump.

As shown in Fig. 3a, when the pumping power and EDF length were varied from 200 to 600 mW and 1 to 7 m, respectively, the DMG between the 3-LP mode-group fluctuated from 4.8 dB to 16.2 dB. Subsequently, an FM-EDFA configuration with a 4.5 m EDF and 600 mW fundamental mode pump power was selected to verify the DMG equalization process, where the DMG_max and DMG_ave over the C-band were 10 dB and 8.95 dB, respectively, as shown in Fig. 3b.

The DMA of a 3-LP mode group DMG equalizer based on femtosecond laser micromachining to induce RI tailoring was numerically investigated. As shown in Fig. 4a, when the L and ∆n values vary from 0 to 400 μm and from 0 to −0.05, respectively, the DMA changes from 0 to 27.8 dB, which is sufficient to cover the entire DMG range of the 3-LP mode-group EDFA. Subsequently, the capability of the DMG equalization was numerically evaluated, as shown in Fig. 4b.

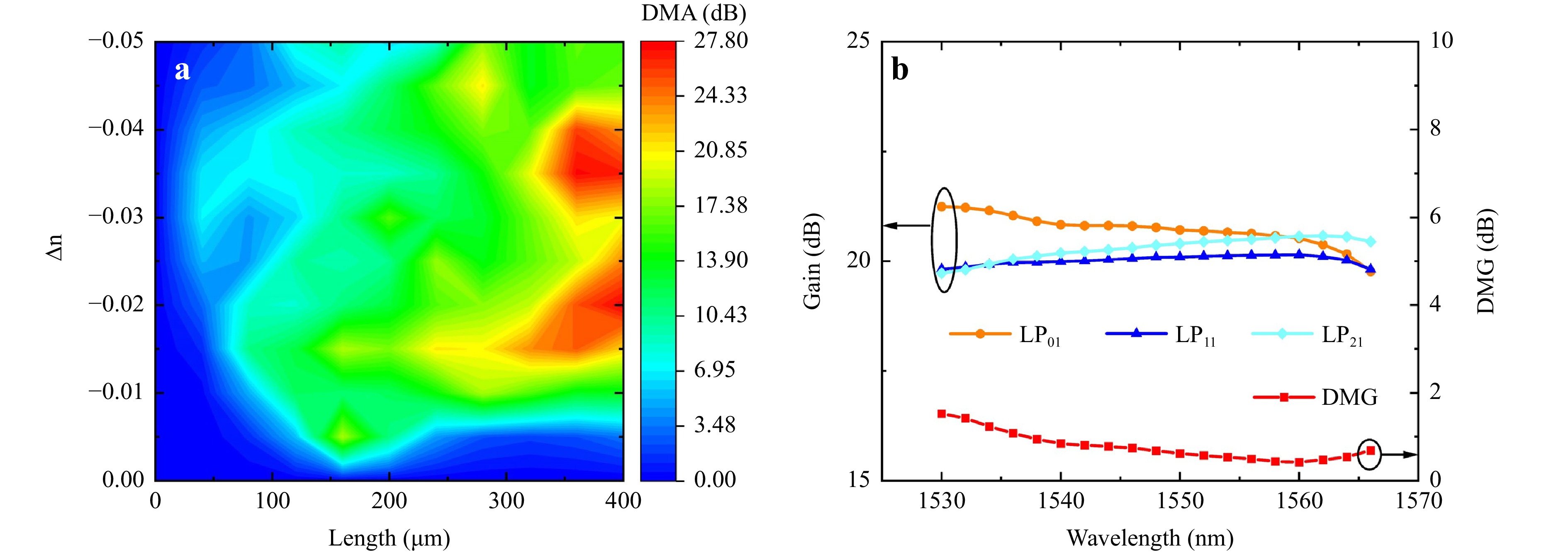

Fig. 4  DMA introduced by the femtosecond laser micromachining-enabled RI tailoring. a DMA of the 3-LP mode-group DMG equalizer under different lengths and ∆n values at 1550 nm. b Gain profile when a DMG equalizer with a length of 120 μm and ∆n of −0.02 was cascaded after the FM-EDFA.

Before DMG equalization, a 4.5 m EDF was core-pumped with a 600 mW, 980 nm laser in the fundamental mode, and the DMG_max and DMG_ave over the C-band were 10 dB and 8.95 dB, respectively. When a DMG equalizer with a length of 120 μm and ∆n of -0.02 was cascaded after the designated FM-EDFA, the DMG_max decreased from 10 dB to 1.52 dB, and the average DMG_ave over the C-band decreased from 8.95 dB to 0.78 dB.

As shown in Fig. 5a, the mode-dependent gain and DMG over the C-band of the 2-LP mode-group before the DMG equalization was initially characterized owing to the lack of the 3-LP mode-group EDF. The maximum gains of the LP₀₁ and LP₁₁ mode-group were greater than 21 dB and 20 dB, whereas the DMG_max and DMG_ave values over the C-band were 2.09 dB and 1.68 dB, respectively. The variations in the DMG with the scanning length L were investigated, as shown in Fig. 5b. When the length L of the DMG equalizer gradually increased with an interval of 20 μm, the corresponding DMG_max and DMG_ave values after equalization were recorded under the different device lengths. When L increased from 0 to 300 μm, DMG_max gradually decreased from 2.09 dB to 0.46 dB, and DMG_ave decreased from 1.68 dB to 0.26 dB. Thus, the optimal length L was fixed at 300 μm. Subsequently, the scanning time N was optimized, as shown in Fig. 5c. By increasing the femtosecond laser scanning time N, both DMG_max and DMG_ave increased, as a larger DMA occurred within the LP₀₁ and LP₁₁ mode-group. Therefore, the optimal value of both the length L and scanning times N were set to 300 μm and 1, respectively. Fig. 5d presents the gain profile and DMG after equalization of the DMG with the optimal fabrication parameters. The values of DMG_max and DMG_ave decreased from 2.09 dB to 0.46 dB and from 1.64 dB to 0.26 dB, respectively. The maximum IL of the LP₁₁ mode-group after using the DMG equalizer was less than 1.9 dB over the C-band, ensuring 64% utilization of the pump power.

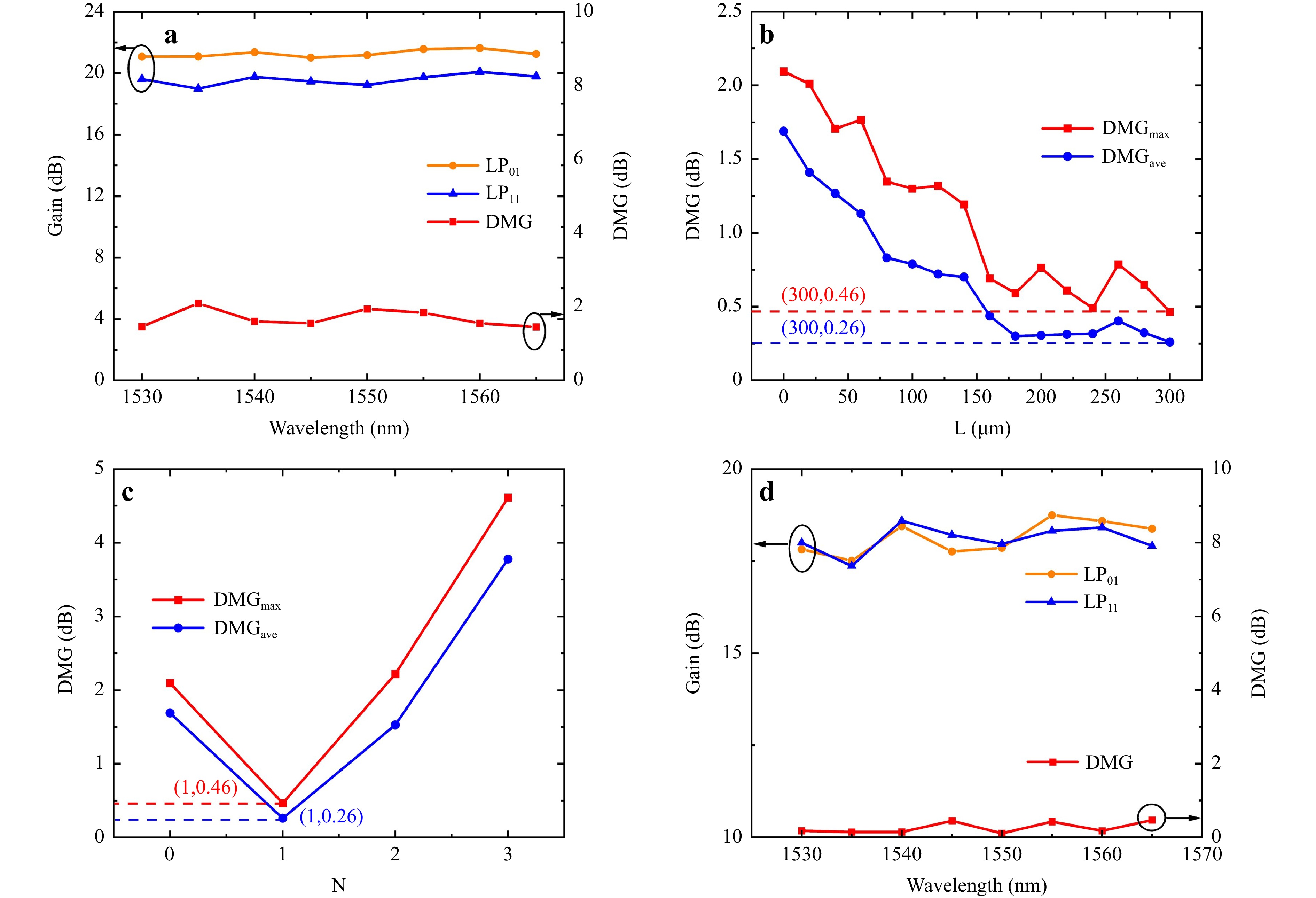

Fig. 5  Characterization of the DMG equalization process. a Modal gain and DMG over the C-band before DMG-equalization obtained from the experimental measurements. Variations in the measured DMG_max and DMG_ave with respect to: b L, and c the scanning times N. d Experimentally measured modal gain and DMG over the C-band after DMG equalization.

A supercontinuum source (YSL Photonics) with an operational wavelength ranging from 450 to 2400 nm was launched into the FMF to obtain an intuitive vision of the inline DMG equalizer. Fig. 6a presents the top view of the DMG equalizer with a length of 300 μm after a single femtosecond laser scan captured by a camera. The fabricated DMG equalizer was then cleaved to obtain a cross-sectional view of the DMG equalizer, as shown in Fig. 6b.

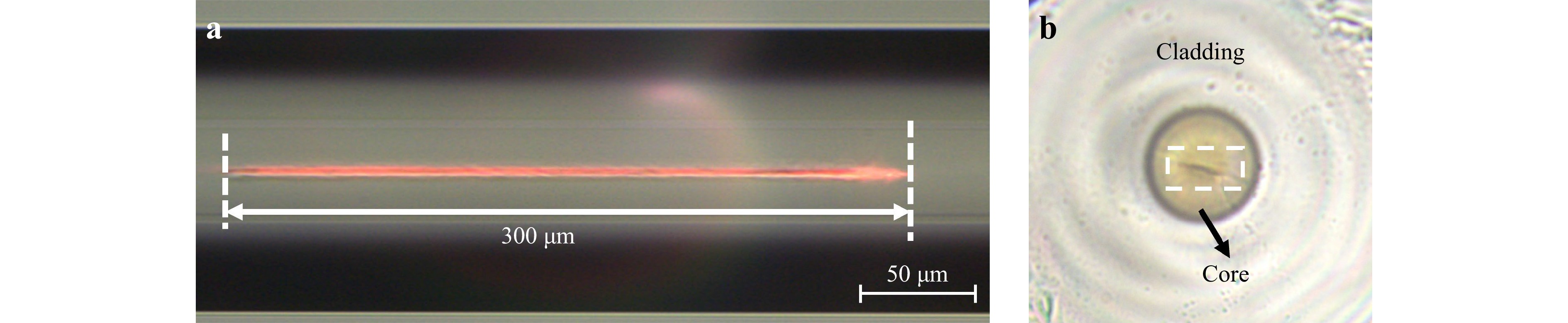

Fig. 6  Microscopic image of the femtosecond laser micromachining-fabricated DMG equalizer. a Top view; b cross-sectional view.

Because the theoretical DMG of the 2-LP mode-group reached up to 6 dB, the range of the in-line DMG equalizer was investigated by changing the scanning times N, as shown in Fig. 7. When N=1, the average attenuation of the DMG equalizer applied to the LP₀₁ mode was approximately 3.14 dB, whereas the LP₁₁ mode underwent an attenuation of 1.45 dB attenuation, leading to a 1.69 dB DMG equalization range. When N=2, the average attenuation values of the LP₀₁ and LP₁₁ mode-group are approximately 5.61 dB and 2.32 dB, respectively, resulting in a 3.29 dB range of DMG equalization. When N=3, the average attenuation value applied to the LP₀₁ mode can reach 8.44 dB, introducing an additional attenuation of 3.05 dB to the LP₁₁ mode. Therefore, the maximum range of DMG equalization was obtained at 5.39 dB. By introducing the geometric parameters of the DMG equalizer into the simulation, the variation of ∆n induced by a single scan was approximately −0.01. Further increasing the scanning time can extend the range of DMG equalization, but it also presents a severe IL to the LP₁₁ mode-group. In addition, the DMG equalizer introduced mode-crosstalk within the LP₁₁ mode-group, resulting in power oscillations. Both the IL and mode crosstalk of the LP₁₁ mode can be reduced with a more precise physical size control of the femtosecond laser-induced RI tailoring area.

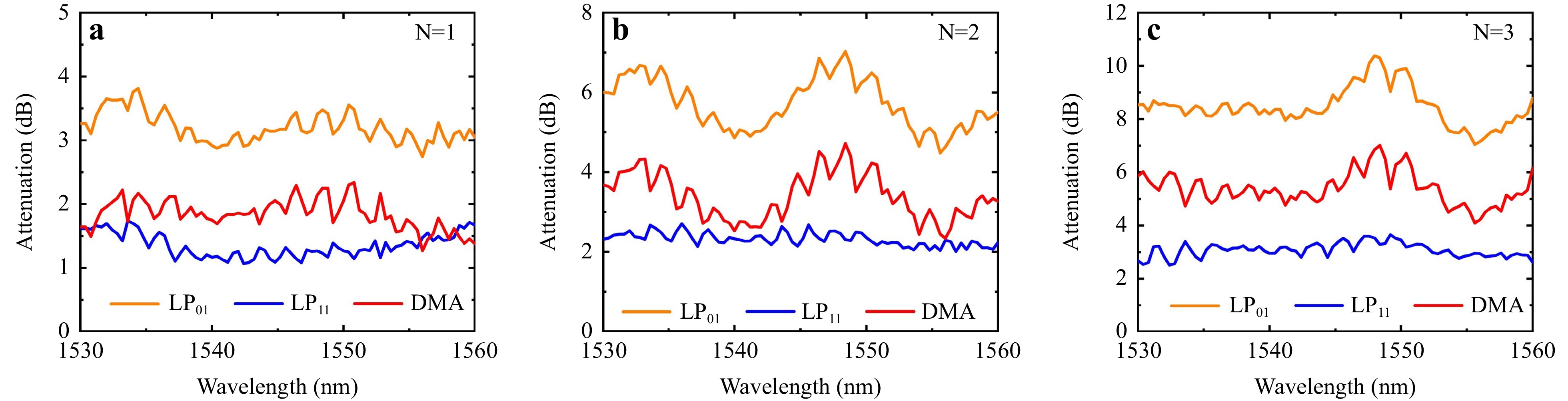

Fig. 7  Relationship between the different attenuation modes with varied laser scanning times N. a N=1. b N=2. c N=3.

In summary, we demonstrated an inline DMG equalizer based on femtosecond laser micromachining-induced RI tailoring. The Simulation results revealed that the optimizing parameters of the femtosecond laser micromachining, including both the length L and RI modulation depth ∆n, can change the range of DMG equalization. To verify the correct function of our proposed equalization strategy, a commonly used FM-EDFA with both a uniform doping FM-EDF and fundamental-mode core pumping was used in both the simulation and experiment. The simulation results demonstrate that when the pump power and EDF length varied from 200 to 600 mW and from 1 to 7 m, the DMG within the LP₀₁, LP_11, and LP₂₁ mode-group varied from 4.8 dB to 16.2 dB. By cascading the DMG equalizer with optimal values of the length L and ∆n, the values of DMG_max and DMG_ave over the C-band decreased from 10 dB to 1.52 dB and from 8.95 dB to 0.78 dB, respectively. Finally, a proof-of-concept experiment demonstrated that the DMG_max decreased from 2.09 dB to 0.46 dB, and the DMG_ave values over the C-band decreased from 1.64 dB to 0.26 dB. More importantly, the IL induced by the DMG equalization was less than 1.9 dB, indicating that 64% of the pumping power was efficiently utilized. The proposed DMG has a maximum equalization range of 5.4 dB, which satisfies the flexible application of the current FM-EDFA. A higher-order mode-group DMG equalization can be achieved with a more complicated RI modification pattern and higher-resolution femtosecond laser micromachining technology, which is ideally desirable for future long-haul MDM transmissions.

The proposed DMG equalizer was fabricated using an ytterbium-doped femtosecond laser (Satsuma, Amplitude), which operated at a wavelength of 1030 nm, pulse width of 270 fs, and variable repetition frequency of 0−250 kHz. The laser was attenuated using a half-wave plate and a Glan prism before being focused onto the core of the FMF by a 20X objective (numerical aperture = 0.5). The FMF was positioned on a 3D motion stage (XMS-50, Newport) with a motion resolution of 50 nm. Real-time monitoring of the fabrication process and position reference of the laser focus plane were achieved when two CCDs were provided for the top and side views, respectively.

In addition, a real-time FM-EDFA mode-gain profile monitoring system was developed. The signal light from a multichannel tunable laser (TSP-1000, OVLINK) was fixed to -10 dBm for each mode-group and co-propagated with a 980 nm pump light at a fundamental mode via a few-mode wavelength division multiplexer (FMSIWDM-15-900-1-FA, YX). Subsequently, the signal and pump light were introduced into a 5 m uniformly-doped FM-EDF with a doping concentration of 10²⁵ m⁻³. Two self-fabricated 2-LP mode-group (LP₀₁ and LP₁₁) photonic lantern (PL) were used for mode-division multiplexing and demultiplexing. The state of polarization (SOP) of the light at the input port of PL₁ was carefully adjusted using a polarization controller (PC) to achieve the maximum output power at the same output port of PL₂, and then fixed during fabrication and characterization. By conducting a measurement of the power transmission matrix of a pair of PLs, the mode crosstalk between the LP₀₁ and LP₁₁ mode-group was determined to be less than −13 dB. Finally, the spectra of the amplified signals were measured using an optical spectrum analyzer (OSA, AQ6370D, Yokogawa). Because the PL is mode-group-selective, the powers of the two LP₁₁ output ports were summed as the power of the LP₁₁ mode-group. This real-time DMG monitoring ensures that the fabrication process achieves optimal DMG equalization.

Numerical computations of the DMG equalizer were performed using the beam-propagation method (BPM). The relationship between the parameters of the DMG equalizer and DMA was investigated. As shown in Fig. 2d, the FMF used in the simulation had a step RI index with the same core/cladding diameter, the core RI was 1.4498 at 1550 nm. The white dotted area in Fig. 2d represents the DMG equalizer with a width of 4 μm, height of 13 μm, length of 120 μm, and Δn of −0.02. A cylinder with a bottom circular radius of 30 μm and height of 600 μm was set as the simulation region, which includes the DMG equalizer and corresponding input and output. The injection mode was the fiber mode of LP₀₁, LP₁₁, and LP₂₁ respectively. Two degenerate modes (LP_11a and LP_11b) were individually injected into the simulation region and summed at the simulation output as one mode-group.

The DMG of the 3-LP mode-group FM-EDFA was simulated based on the two energy levels of the EDFA model³³. The influence of the pump power and FM-EDF length on the DMG was investigated, as shown in Fig. 3a. The most commonly used pumping configurations of the fundamental-mode core pumping and FM-EDF with a step-index profile were used for the simulation. The FM-EDF used in the simulation had a step-index profile with a core/cladding diameter of 19/125 μm. The RI of the FMF core was 1.4507 at 1550 nm, and the erbium ions were uniformly doped at a concentration of 10²⁵ m⁻³. The passive FMF used in the simulation had a step RI index with the same core/cladding diameter; the core RI was 1.4498 at 1550 nm. To obtain the gain profile and DMG between the LP₀₁, LP₁₁, and LP₂₁ mode-group under variable pumping powers and EDF lengths, the input signal power was fixed to −10 dBm for each mode-group.

As shown in Fig. 4a, the DMG equalizer used in the simulation had a width D and height H of 9 μm and 10 μm, respectively. The influence of the RI modulation depth ∆n and length L on the DMA of DMG equalizer were investigated. To select the device parameters, the individual mode-group spectrum and DMG_ave over the C-band were first obtained. Subsequently, an equalizer with different parameters would introduce various mode-group attenuations. By subtracting the DMA spectrum from the un-equalized mode gain spectrum, the DMG over the C-band and corresponding device parameters can be obtained, as shown in Fig. 4b.

The DMG was fabricated using femtosecond laser micromachining. The pulse energy and repetition frequency of the femtosecond laser were set to 1.8 μJ and 30 kHz, respectively. The 3D motion stage was programmed to scan along the FMF core axis with a speed of 10 μm/s to fabricate the DMG equalizer.

This research was supported by the National Natural Science Foundation of China (62305071), China Postdoctoral Science Foundation (2023M740747), and Guangdong Introducing Innovative and Entrepreneurial Teams of “The Pearl River Talent Recruitment Program” (2021ZT09X044).
